Terminal Block What It Is Types And Common Names

Introduction

In electrical engineering and wiring systems, one small but essential component often goes unnoticed: the Terminal Block. This simple device plays a critical role in connecting, securing, and organizing electrical wires. Whether in industrial machinery, power distribution, or renewable energy systems, terminal blocks provide safe and reliable electrical connections.

In this guide, we’ll explain what a terminal block is, explore different terminal block types, show how terminal block connections work, and highlight their common names and uses.

1. What Is a Terminal Block?

1-1 Terminal Block Definition

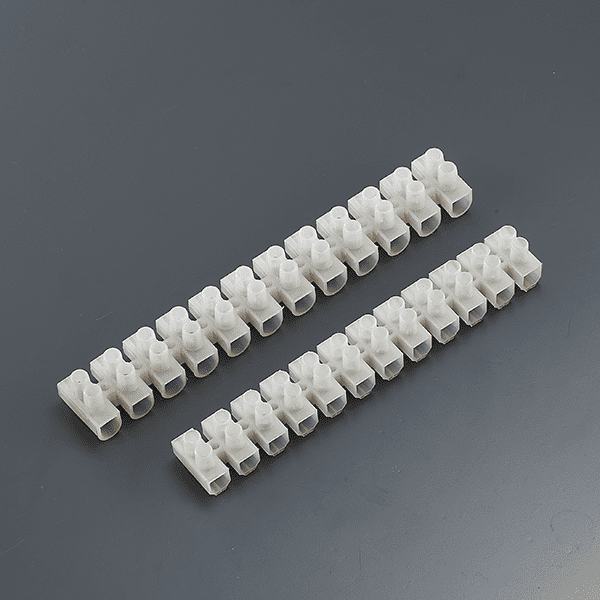

A terminal block (also called connection block, terminal strip, or connector block) is an insulated base with conductive metal parts used to connect two or more wires securely.

1-2 Structure and Function in Electrical Circuits

Structure: A typical terminal block has an insulating housing, a conductive terminal (usually copper or brass), and a clamping mechanism such as a screw or spring.

Function: It ensures safe electrical connections, provides mechanical support, and allows multiple wires to be connected, disconnected, or rearranged without soldering.

2. Types of Terminal Blocks

2-1 Overview of Terminal Block Types

Terminal blocks come in different designs depending on their application, connection method, and installation requirements.

2-2 Screw Terminal Block

The most traditional and widely used.

Uses screws to clamp wires securely.

Ideal for power distribution, building wiring, and general applications.

2-3 Spring Clamp Terminal Block

Uses spring pressure instead of screws.

Vibration-resistant and tool-free installation.

Common in automation and control systems.

2-4 Pluggable Terminal Block

Designed for easy installation and removal.

Wires connect to a pluggable connector that fits into a base.

Perfect for applications that require frequent maintenance or modular wiring.

2-5 DIN Rail Terminal Block

Mounted on standardized DIN rails inside electrical panels.

Modular, compact, and easy to expand.

Widely used in control cabinets, industrial systems, and automation.

3. Terminal Block Connection and Wiring

3-1 Connection Methods

Terminal blocks typically support screw tightening, spring clamping, or plug-in connections, depending on type.

3-2 Terminal Block Wiring Guide

Strip the insulation from the wire end.

Insert the bare wire into the terminal entry.

Tighten the screw or ensure the spring clamp holds the wire firmly.

Double-check that no bare wire is exposed.

3-3 Best Practices for Safe Connections

Always use the correct terminal block size for the wire gauge.

Avoid overtightening screws to prevent wire damage.

Label connections in control panels for easy identification.

4. Common Uses and Applications

Terminal blocks are versatile and widely used across industries:

Industrial Machinery & Control Systems – wiring sensors, motors, and controllers.

Power Distribution & Building Wiring – safe connections for lighting and electrical circuits.

Renewable Energy Systems – connecting solar panels, inverters, and batteries.

Automotive & Electronics – organizing low-voltage circuits and wiring harnesses.

5. Terminal Block Common Names

Terminal blocks are known by various names depending on region and industry:

Connection blocks

Terminal strips

Barrier strips

Connector blocks

For example, in the U.S. the term barrier strip is common, while in Europe connector block or terminal strip may be used.

6. FAQ

Q1: What is the difference between a terminal block and a connector?
A terminal block is fixed and usually mounted on a panel or DIN rail, while connectors are detachable components designed for quick plug-and-play.

Q2: Can terminal blocks handle high current?
Yes, but the rating depends on the terminal block type and size. Heavy-duty screw terminal blocks are designed for higher current.

Q3: Do terminal blocks require maintenance?
Yes. Periodic inspection is important to ensure connections are tight and corrosion-free.

Conclusion

Terminal blocks are simple yet vital components in electrical systems, offering secure, flexible, and safe connections. With different terminal block types—such as screw, spring clamp, pluggable, and DIN rail—engineers can choose the best option for each application.

From industrial machinery to residential wiring, terminal blocks are used everywhere to ensure reliable electrical connections. No matter what you call them—terminal strips, connector blocks, or barrier strips—their role in electrical safety and organization is indispensable.
