Understanding Cable Glands Selection Applications And Installation Tips

Introduction

In any electrical wiring system, cable glands are critical components that ensure safe and secure cable connections. They not only provide sealing and strain relief but also protect cables against dust, dirt, moisture, and mechanical stress. Choosing the right cable gland and installing it correctly is essential for reliable performance in both residential and industrial systems. This article will walk you through what cable glands are, their types, selection factors, applications, installation guide, and safety tips.

1. What Is a Cable Gland?

1-1 Definition and Primary Functions

A cable gland is a device designed to attach and secure the end of an electrical cable to equipment, offering:

Sealing: Prevents dust, dirt, and water from entering the enclosure.

Securing: Holds the cable firmly in place.

Strain relief: Reduces stress on cable connections.

1-2 Importance in Electrical Wiring and Cable Management

Cable glands are crucial in electrical wiring because they ensure both mechanical stability and environmental protection. They are widely used in residential, commercial, and industrial systems for safe and organized cable management.

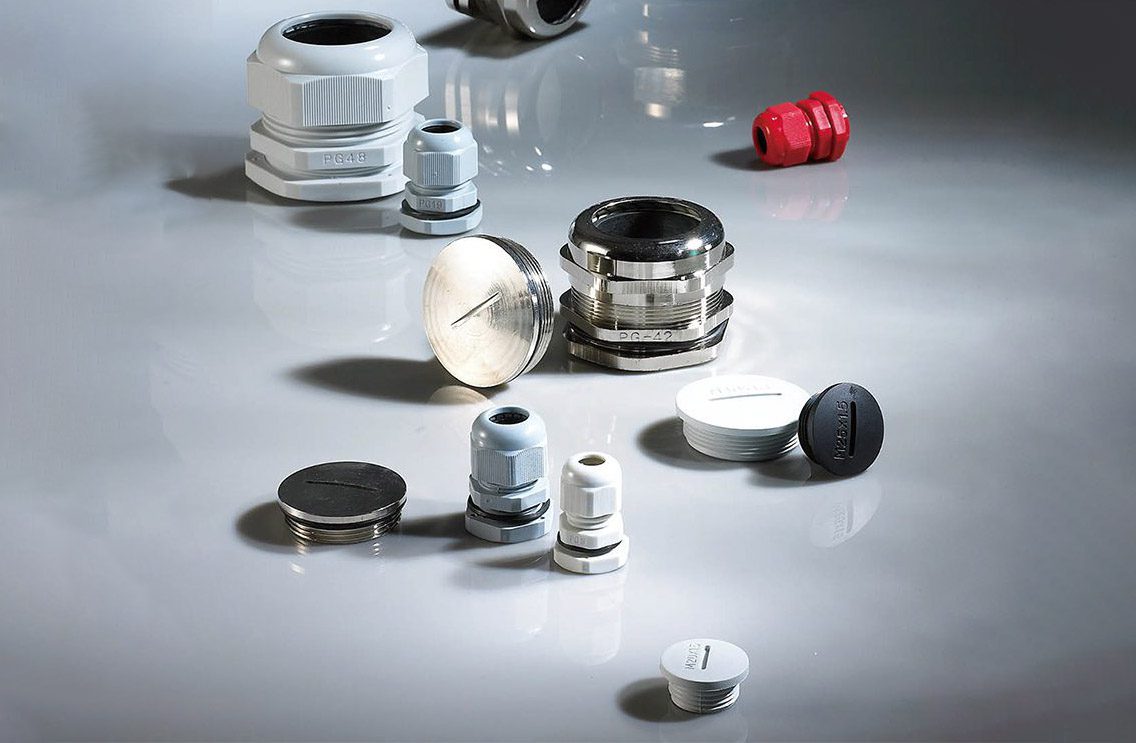

2. Types of Cable Glands

2-1 Common Types

Brass Cable Glands – Durable and corrosion-resistant, commonly used in industrial settings.

Nylon Cable Glands – Lightweight, cost-effective, and ideal for residential and light commercial applications.

Stainless Steel Cable Glands – High resistance to corrosion, chemicals, and extreme environments.

Plastic Cable Glands – Economical, suitable for indoor low-demand applications.

2-2 Differences and Ideal Use Cases

Brass: Heavy-duty, long lifespan, suitable for industrial machinery.

Nylon/Plastic: Easy to install, ideal for light-duty electrical wiring.

Stainless Steel: Best for marine, chemical, or outdoor harsh environments.

3. Key Factors in Cable Gland Selection

3-1 Considerations for Choosing the Right Gland

When planning cable gland selection, you should consider:

Cable size – Always match gland size to cable diameter.

Environment – Indoor vs. outdoor usage.

IP rating – Higher IP rating offers better protection against water and dust.

Material durability – Brass, nylon, or stainless steel depending on conditions.

3-2 Indoor vs. Outdoor Applications

Indoor applications: Nylon or plastic glands may be sufficient.

Outdoor or industrial environments: Brass or stainless steel glands with high IP ratings are recommended.

4. Cable Gland Applications

4-1 Residential Electrical Wiring

Securing cables in switchboards and distribution panels.

Preventing dust and accidental pull on home wiring.

4-2 Industrial and Commercial Electrical Systems

Used in power plants, control panels, and heavy machinery.

Industrial cable glands are designed for durability, chemical resistance, and waterproof sealing.

5. Cable Gland Installation Guide

5-1 Step-by-Step Installation Instructions (How to Install a Cable Gland)

Select the correct gland size for your cable.

Disassemble the gland into its parts (cap, body, seal, nut).

Insert the cable through the gland components.

Tighten the gland to secure the cable firmly in place.

Check for proper sealing and alignment.

5-2 Tools Required and Best Practices

Tools: spanner, screwdriver, wire stripper.

Best practices: avoid overtightening, and always check IP rating compliance.

5-3 Common Mistakes to Avoid

Using the wrong gland size.

Choosing incorrect material for environment.

Poor tightening, leading to water ingress or cable slippage.

6. Safety and Reliability Tips

6-1 Importance of Correct Size and Material Selection

Correct gland size prevents loose connections, while appropriate material ensures long-term reliability.

6-2 Regular Inspection and Maintenance

Inspect cable glands periodically for wear, corrosion, or damage. Replace if sealing effectiveness is compromised.

6-3 Compliance with Standards

Always choose glands that meet international electrical safety standards for secure and reliable operation.

7. FAQ

Q1: What is a cable gland used for?
A cable gland is used to seal, secure, and protect electrical cables in various environments.

Q2: What IP rating should I choose for outdoor use?
Select waterproof cable glands with IP66 or higher for outdoor installations.

Q3: Can one gland fit multiple cable sizes?
No, cable glands are designed for specific cable gland sizes. Always match the gland to your cable diameter.

Conclusion

Cable glands are essential cable termination accessories that provide safety, durability, and efficiency in electrical installations. From residential wiring to industrial cable management, choosing the right type, size, and material ensures reliable electrical circuit protection. By following proper cable gland installation practices and safety tips, you can significantly extend the lifespan of your electrical system while ensuring compliance with safety standards.
