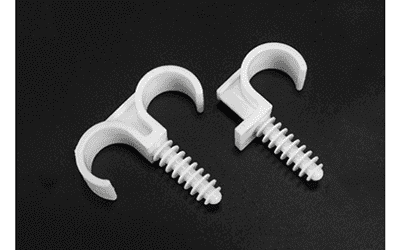

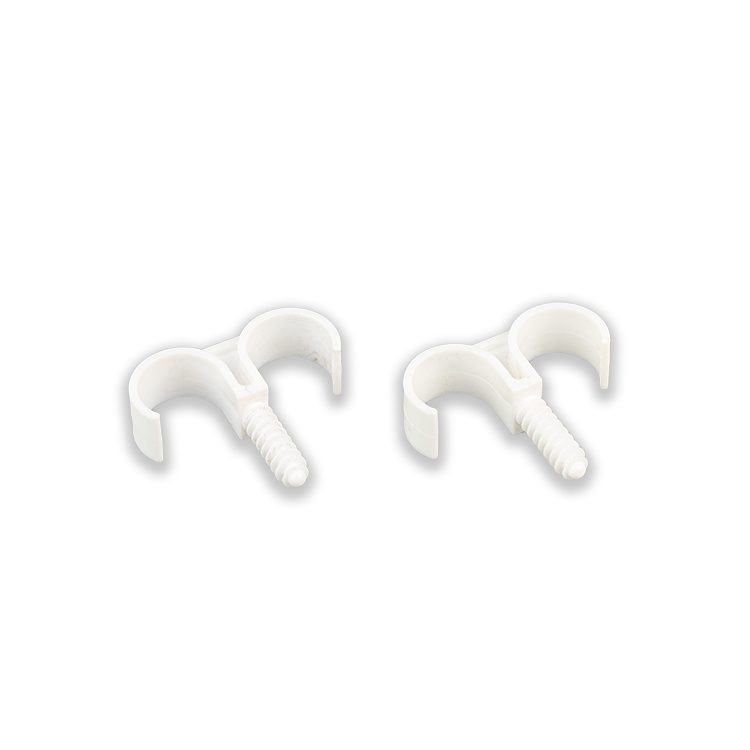

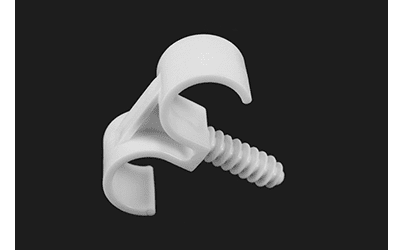

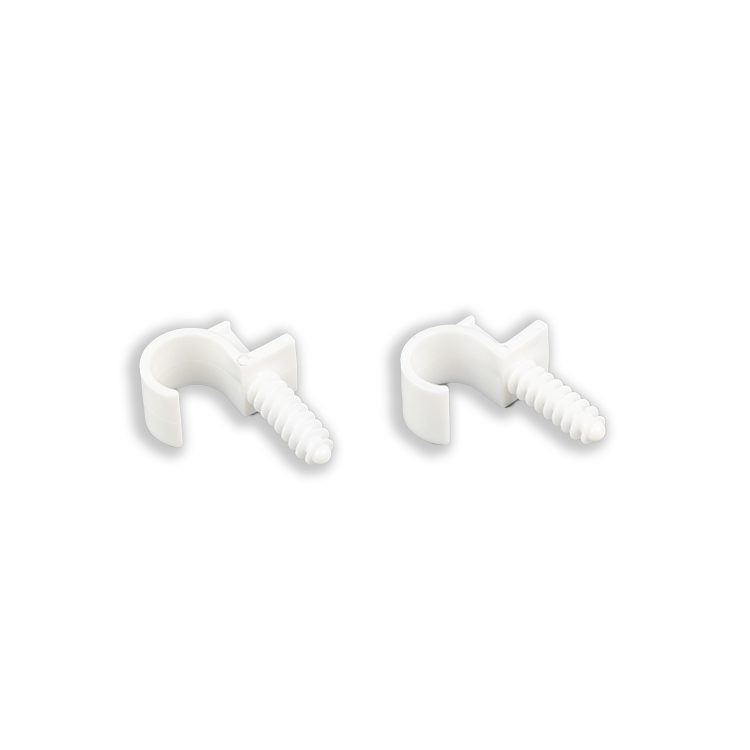

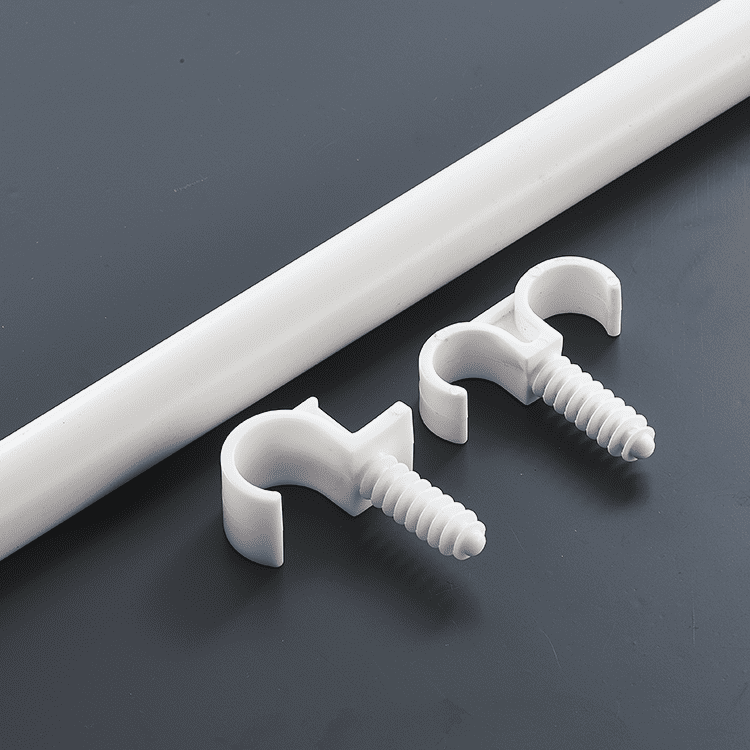

Single/Double Plastic Tube Clamps

Material: PE
Features: Upgraded PE plastic pipe clamp, one-piece molding, not easy to crack when installed on the ceramic tile wall,beautiful and convenient, labor-saving installation greatly improves the work efficiency of workers. Suitable for all kinds of pipes (water pipes, line pipes) exposed/concealed installation.

Product information

Material: PE
Features: Upgraded PE plastic pipe clamp, one-piece molding, not easy to crack when installed on the ceramic tile wall,beautiful and convenient, labor-saving installation greatly improves the work efficiency of workers. Suitable for all kinds of pipes (water pipes, line pipes) exposed/concealed installation.



Product parameters

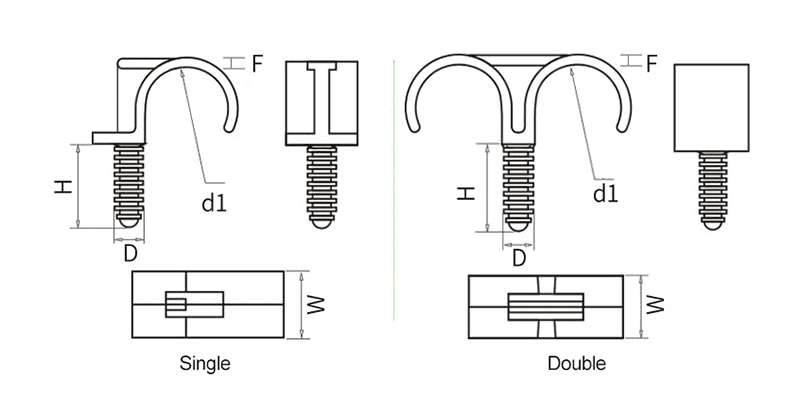

Item No. Dimensions(mm) Tube
H D d1 w F
20 Single 30 10 20 19.2 2.55 20mm
25 Single 30 10 25 19.2 2.6 25mm
20 Double 30 10 20 19.2 2.55 20mm
25 Double 30 10 25 19.2 2.6 25mm



Applicable scene
